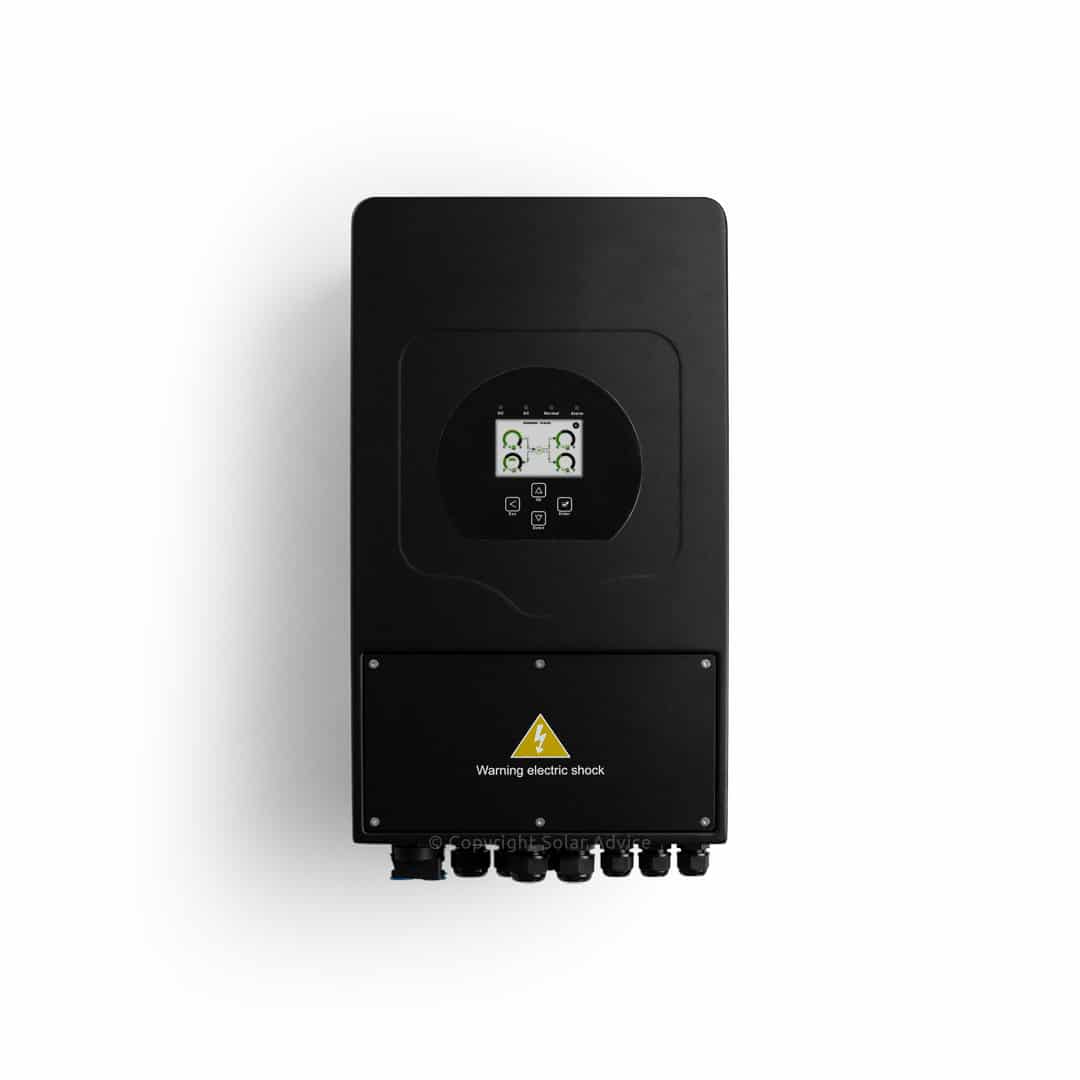

The V-TAC DEYE SUN-15K-SG05LP3-EU-SM2 is a high-performance three-phase hybrid inverter designed for residential and commercial solar energy systems. With a nominal output power of 15 kW and dual MPPT (Maximum Power Point Tracking) channels, it efficiently converts solar energy into usable electricity. This inverter supports both on-grid and off-grid operations, making it a versatile choice for various energy needs.
Specifications
| Feature | Specification |
|---|---|
| Model | SUN-15K-SG05LP3-EU-SM2 |
| Nominal Output Power | 15,000 W |
| Input Voltage Range | 160–650 V |
| Rated Input Voltage | 550 V |
| Maximum DC Input Power | 22,400 W |
| Number of MPPT Channels | 2 |
| Rated AC Output Voltage | 380 V (3-phase) |
| AC Output Frequency | 50/60 Hz |
| Maximum AC Output Power | 15,000 W |
| Battery Voltage Range | 42–60 V (supports lithium and lead-acid) |
| Maximum Charging/Discharging Current | 350 A |
| Efficiency | Max: 97.6%, European: 97.0% |
| Cooling Method | Intelligent Air Cooling |
| Ingress Protection Rating | IP65 |
| Operating Temperature Range | -40°C to +60°C |
| Dimensions (W x H x D) | 456 x 750 x 268.5 mm |
| Weight | 50.6 kg |
| Communication Ports | RS485, RS232, CAN |
